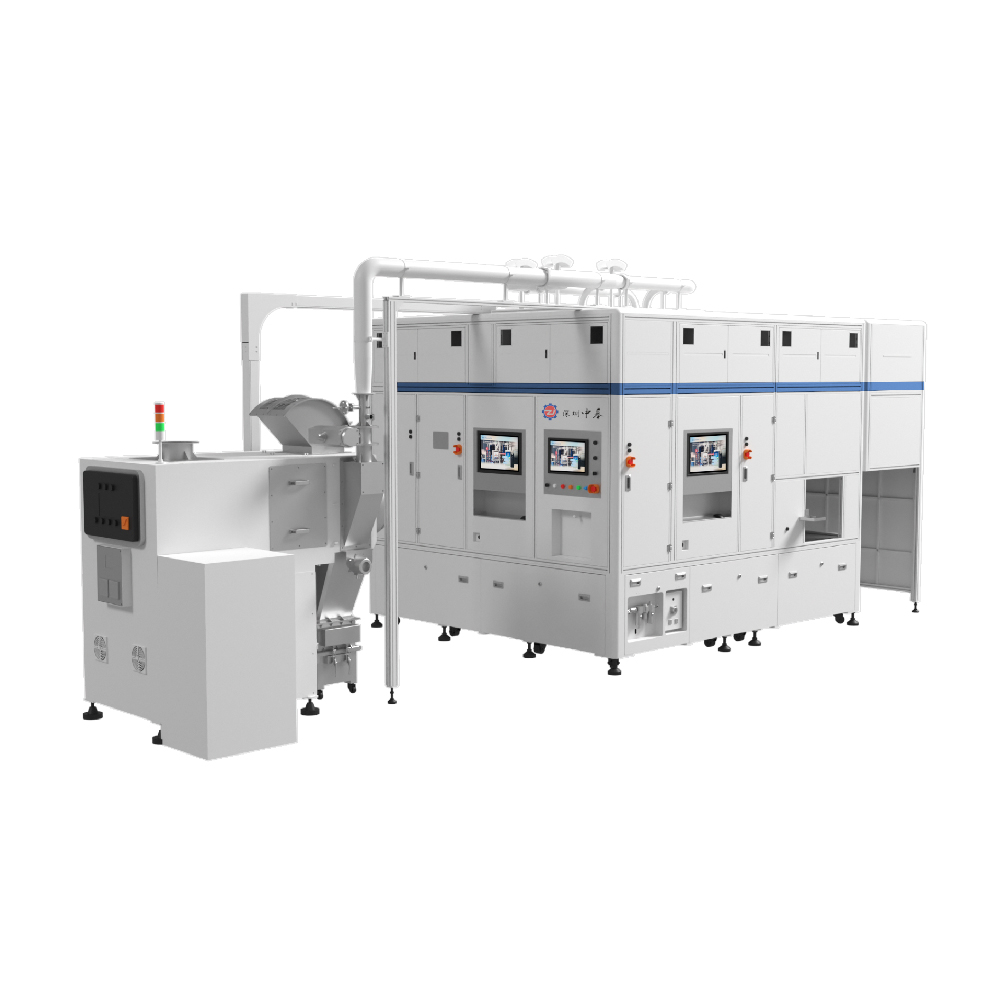

The equipment is used to laser weld the liquid injection port of the top cover of square aluminum shell batteries to the aluminum nail to achieve the full sealing of the battery.
| Equipment capacity | 6-20PPM |
| Equipment yield | ≥99.8% |
| Equipment failure rate | ≤2% |
| Welding laser | YAG 600w or 1kw single mode + swing head |
| Sealing nail feeding accuracy | ±0.1mm |
| Noise | ≤75db |
| Compatible products range | T=20~75mm W=150~300 H=80~220 |
The logistics and material handling is achieved through roller conveyors, synchronous belt conveyors, and robotic transfer systems. Data generated from each workstation can be independently uploaded to the company's MES (Manufacturing Execution System). Production data, process data, and technical data are traceable. The system supports MES integration and standalone operation of line-side servers.
