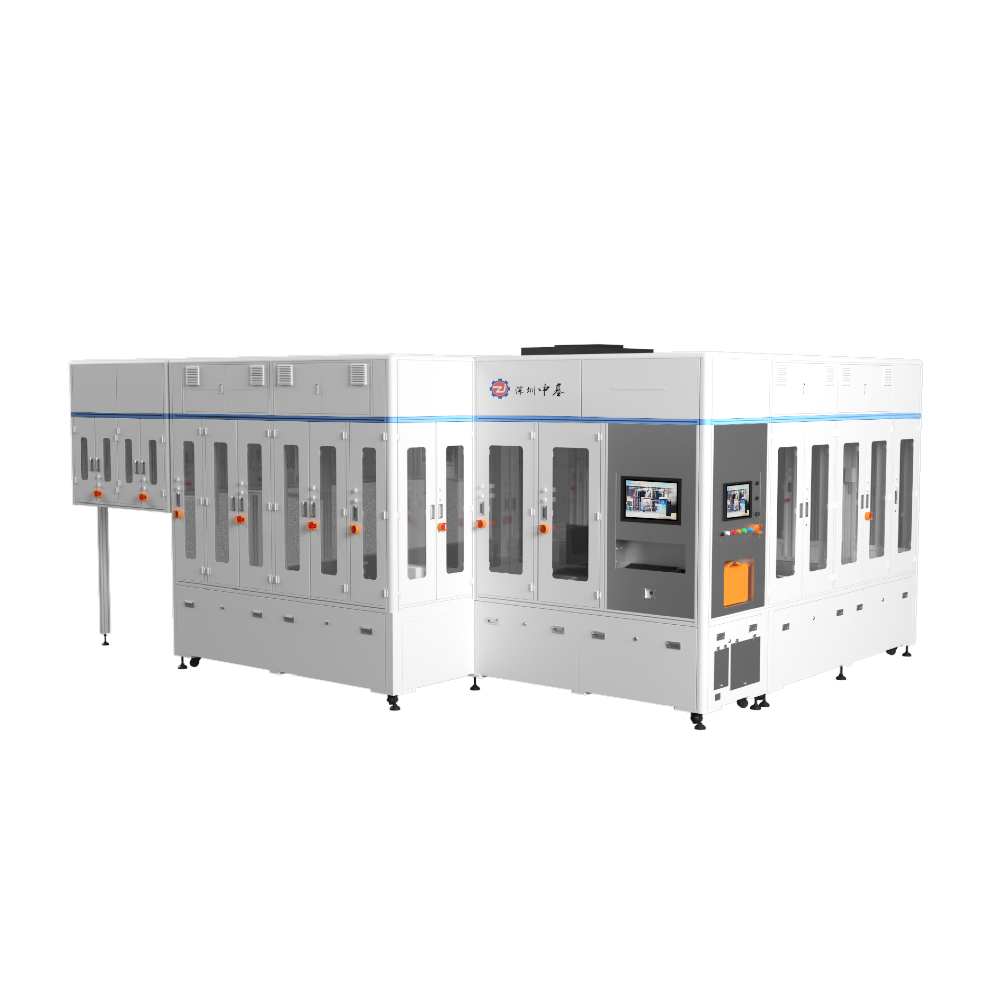

The equipment is used for the assembly and fusion welding of Mylar and cells of square aluminum-cased batteries on the top cover bracket, which protects the cells.
| Equipment capacity | 6-20PPM |
| Equipment yield | ≥99.8% |
| Equipment failure rate | ≤2% |
| Noise | ≤75db |
| Compatible products range | T=20~75mm W=150~300 H=80~220 |
The logistics and material handling is achieved through roller conveyors, synchronous belt conveyors, and robotic transfer systems. Data generated from each workstation can be independently uploaded to the company's MES (Manufacturing Execution System). Production data, process data, and technical data are traceable. The system supports MES integration and standalone operation of line-side servers.
